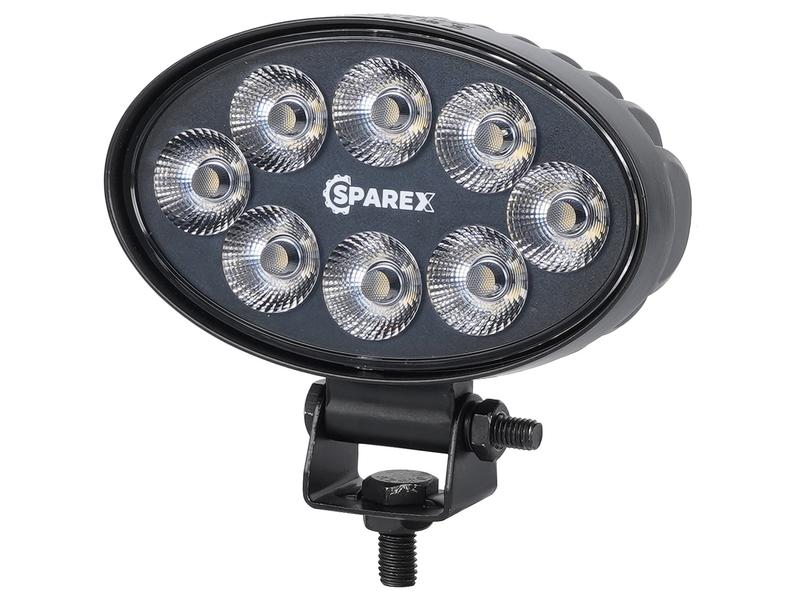

LED Work Light, Interference: Class 3, 3200 Lumens, 12-40V

Specifications

ECE Rating: Reg 10
CE Approved: Yes
IP rating: IP68K
Connection Type: DT Connector

Beam Angle

140°

Beam Type

Flood Beam

Brand

Sparex

Cable Length mm

150

CE Approved

Yes

Connection Type

DT Connector

ECE Rating

Reg 10

erp_barcode_128

S.173546

erp_barcode_ean13

5045161735465

Fixing

Universal Mount

Housing Material

Aluminium

Interference EMC EMI CISPR 25

Class 3

IP Rate

IP68K

Lens Colour

Clear

Lens Material

Plastic Safety Glass

Lighting Series

Standard LED

Light source

LED

Lumens Effective

2200

Lumens Raw

3200

Lux Value

70.13

Note

Bracket included

Number of LEDs:

32 LEDs

Overall height (inches)

4-49/64

Overall height (mm)

121

Overall Length (inches)

5-33/64

Overall length (mm)

140

Overall width (inches)

2-11/64

Overall width (mm)

55

Power Consumption @ 12V

2.0Amps

Power Consumption @ 24V

1.0Amp

RoHS Approved

Yes

SAE Approved

No

Shape

Oval

Tariff Code

8539100090

Volts

12-40V

With Noise Suppression

Yes

Working Temperature °C

-30° to 70°

Suitable For Make/Model

This product is not associated with any particular make or model

Oem Part Numbers

This product is not associated with any particular OEM part number

Catalog Pages

This product does not appear in any Sparex printed catalogues
